Haier 32D2000 Service Manual

Also see for 32D2000: User manual

Contents
  1. Table of Contents2
  2. Chapter 1. General Information4
  3. Chapter 2. Specification9
  4. Chapter 3. Disassemble and Assemble12
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions18
  7. Chapter 6. Operation Instructions20
  8. Chapter 7. Electrical Parts23
  9. Chapter 8. Measurements and Adjustments31
  10. Chapter 9. Trouble Shooting35

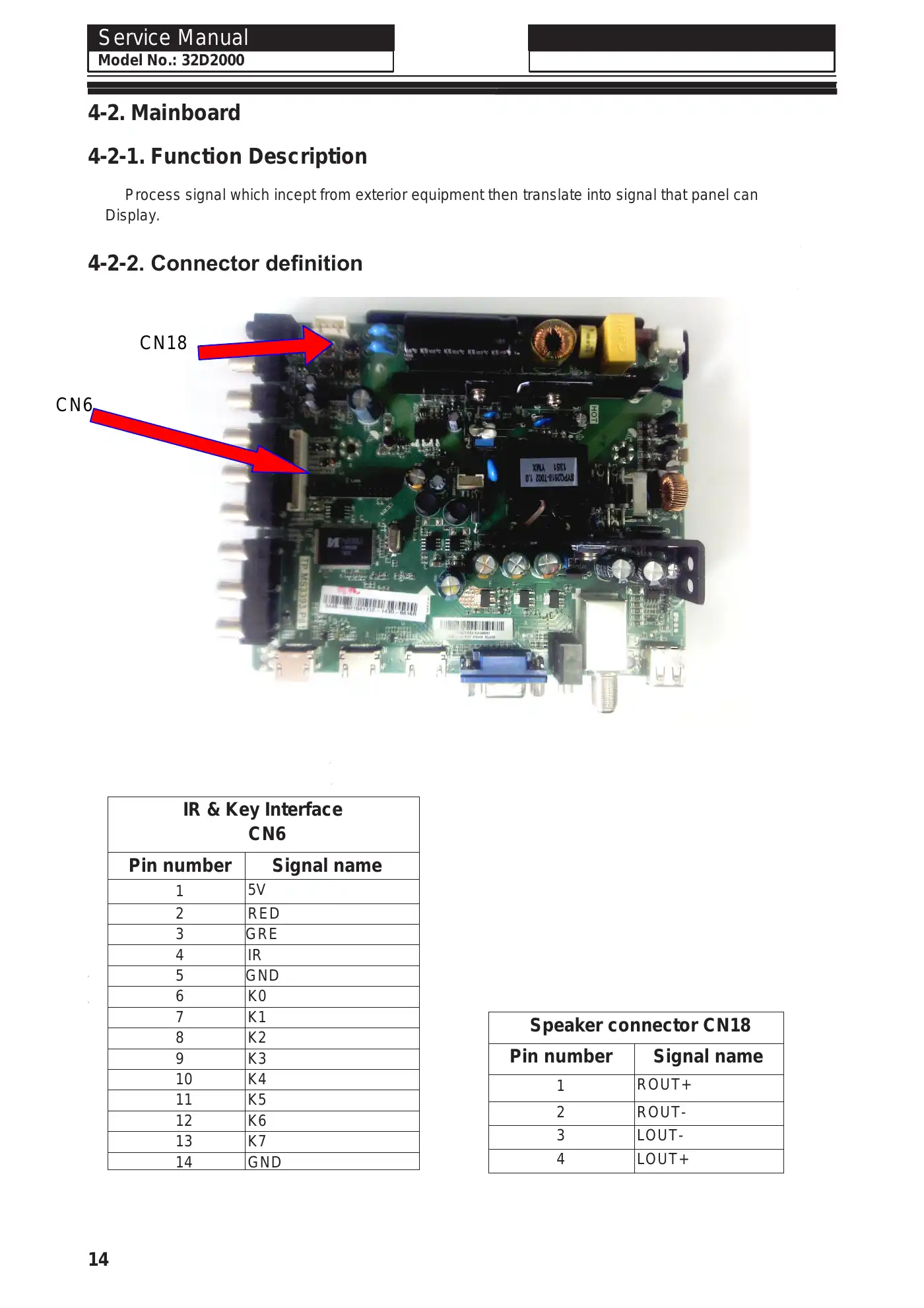

Haier 32D2000 Service Manual Manual pdf 15 page image
Service ManualModel No.: 32D20004-2. Mainboard4-2-1. Function DescriptionProcess signal which incept from exterior equipment then translate into signal that panel canDisplay.4-2-2. Connector definitionCN18CN614IR & Key InterfaceCN6Pin number Signal name1 5V2 RED3 GRE4 IR5 GND6 K07 K18 K29 K310 K411 K512 K613 K714 GNDSpeaker connector CN18Pin number Signal name1 ROUT+2 ROUT-3 LOUT-4 LOUT+
