Haier 29T7A Operation Instructions Manual

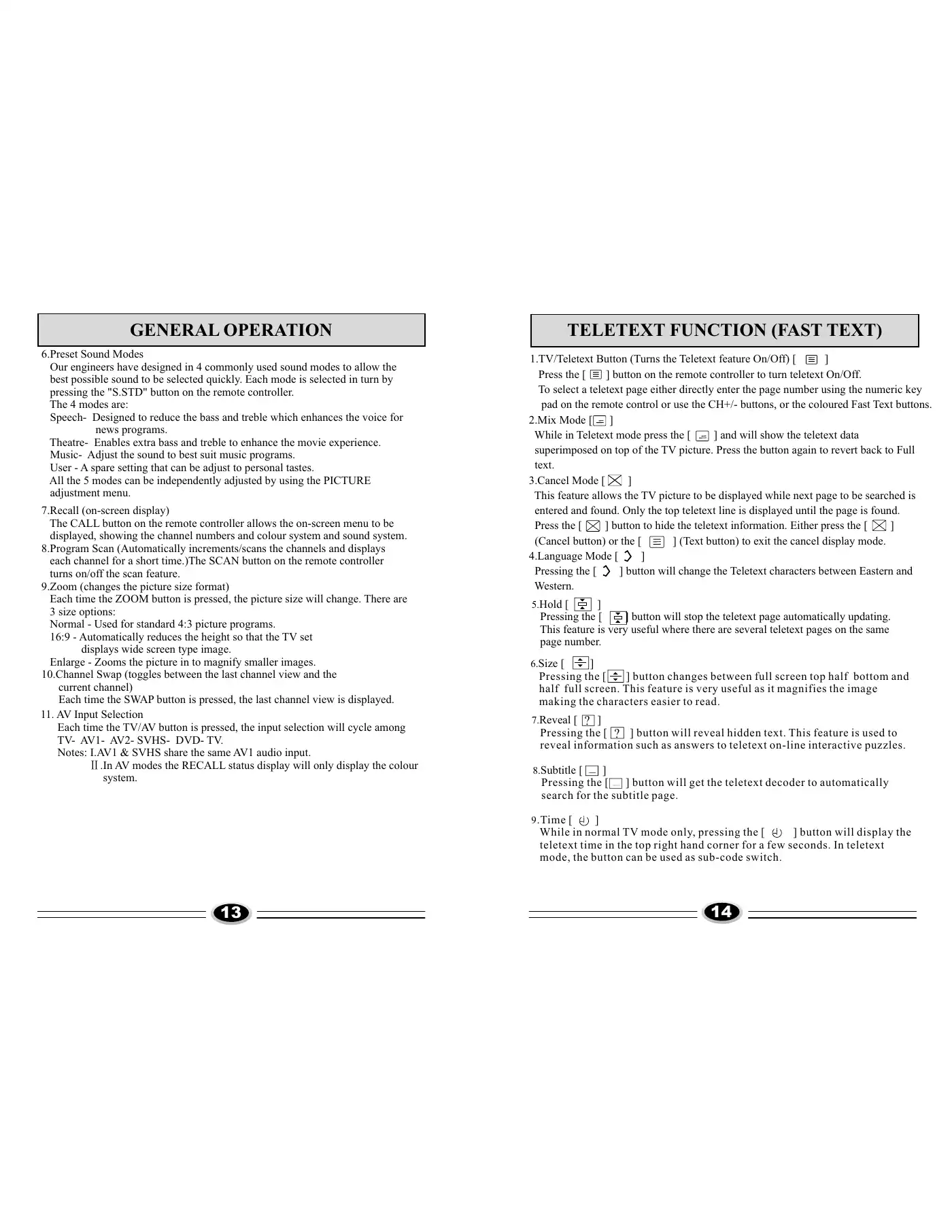

1.TV/Teletext Button (Turns the Teletext feature On/Off) [ ]Press the [ ] button on the remote controller to turn teletext On/Off.To select a teletext page either directly enter the page number using the numeric keypad on the remote control or use the CH+/- buttons, or the coloured Fast Text buttons.2.Mix Mode [ ]While in Teletext mode press the [ ] and will show the teletext datasuperimposed on top of the TV picture. Press the button again to revert back to Fulltext.3.Cancel Mode [ ]This feature allows the TV picture to be displayed while next page to be searched isentered and found. Only the top teletext line is displayed until the page is found.Press the [ ] button to hide the teletext information. Either press the [ ](Cancel button) or the [ ] (Text button) to exit the cancel display mode.4.Language Mode [ ]Pressing the [ ] button will change the Teletext characters between Eastern andWestern.5.Hold [ ]Pressing the [ ] button will stop the teletext page automatically updating.This feature is very useful where there are several teletext pages on the samepage number.6.Size [ ]Pressing the [ ] button changes between full screen top half bottom andhalf full screen. This feature is very useful as it magnifies the imagemaking the characters easier to read.7.Reveal [ ]Pressing the [ ] button will reveal hidden text. This feature is used toreveal information such as answers to teletext on-line interactive puzzles.? ?TELETEXT FUNCTION (FAST TEXT)GENERAL OPERATION8.Subtitle [ ]Pressing the [ ] button will get the teletext decoder to automaticallysearch for the subtitle page.9.Time [ ]While in normal TV mode only, pressing the [ ] button will display theteletext time in the top right hand corner for a few seconds. In teletextmode, the button can be used as sub-code switch.13 146.Preset Sound ModesOur engineers have designed in 4 commonly used sound modes to allow thebest possible sound to be selected quickly. Each mode is selected in turn bypressing the "S.STD" button on the remote controller.The 4 modes are:Speech- Designed to reduce the bass and treble which enhances the voice fornews programs.Theatre- Enables extra bass and treble to enhance the movie experience.Music- Adjust the sound to best suit music programs.User - A spare setting that can be adjust to personal tastes.All the 5 modes can be independently adjusted by using the PICTUREadjustment menu.7.Recall (on-screen display)The CALL button on the remote controller allows the on-screen menu to bedisplayed, showing the channel numbers and colour system and sound system.8.Program Scan (Automatically increments/scans the channels and displayseach channel for a short time.)The SCAN button on the remote controllerturns on/off the scan feature.9.Zoom (changes the picture size format)Each time the ZOOM button is pressed, the picture size will change. There are3 size options:Normal - Used for standard 4:3 picture programs.16:9 - Automatically reduces the height so that the TV setdisplays wide screen type image.Enlarge - Zooms the picture in to magnify smaller images.10.Channel Swap (toggles between the last channel view and thecurrent channel)Each time the SWAP button is pressed, the last channel view is displayed.11. AV Input SelectionEach time the TV/AV button is pressed, the input selection will cycle amongTV- AV1- AV2- SVHS- DVD- TV.Notes: I.AV1 & SVHS share the same AV1 audio input.Ⅱ.In AV modes the RECALL status display will only display the coloursystem.

/ 11

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

To clean the TV set safely, first pull out the power plug from the AC outlet. Use a dry, soft cotton cloth to clean the cabinet and screen. Avoid using benzene, petrol, or other chemicals, as they can damage the TV set.

If the TV set is not going to be used for a long time or during a severe thunder and lightning storm, it is recommended that you disconnect the TV set from the AC power outlet and remove the aerial plug to ensure safety.

To connect an antenna to the Haier 29T7A TV, you can use either a coaxial cable (75Ω) or a twin-lead cable (300Ω). For a coaxial cable, insert the antenna plug into the 75Ω socket. For a twin-lead cable, shape the cable as shown in figure D, connect the leads to an antenna adapter, and then insert the adapter into the 75Ω socket.

To replace the batteries in the remote control unit, place the unit face down and open the battery cover. Insert two 'AA' size batteries, ensuring the + and - signs on each battery match the + and - signs in the battery compartment. Close the cover of the battery compartment. Always replace both batteries at the same time and avoid using rechargeable batteries or mixing battery types.

To mute the TV, press the 'MUTE' button on the remote controller.

To set the sleep timer, press the CH+/- buttons to select SLEEP TIMER, then press the VOL+/- buttons to set the duration between 10 to 180 minutes. The TV will turn off automatically after the set time.

You can switch between the different sound modes by pressing the 'S.STD' button on the remote controller. The TV has four preset sound modes: Speech, Theatre, Music, and User. Each press of the button will cycle through these modes.

The Haier 29T7A TV offers three picture size options: Normal, 16:9, and Enlarge. You can change the picture size by pressing the ZOOM button on the remote controller. Each press will cycle through the different size options.

The Haier 29T7A TV offers several audio and video output options. For video, you have options like VIDEO, S-VIDEO, and component outputs. For audio, you have options like AUDIO-L, AUDIO-R, and AUDIO outputs. These can be connected to various devices such as DVD players, VCRs, and other external components.

If your TV has no sound or no picture, ensure that the power supply is connected to the TV set and turned on. Also, check that the TV set is not in 'Listen Mode' and that the brightness and contrast are not turned down. If the issue persists, consult with your local authorized service center.
