Haier 24E2000 Service Manual

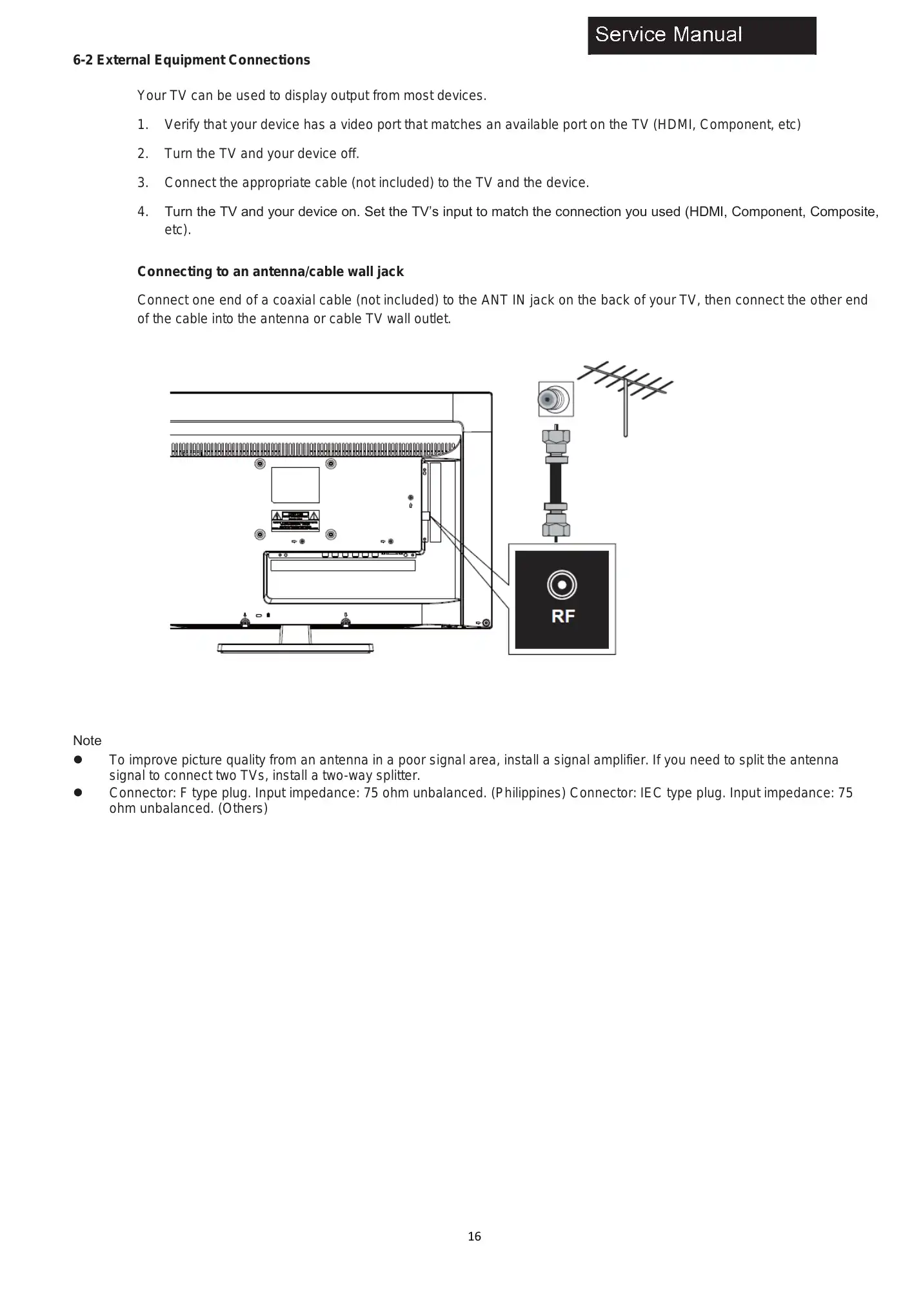

166-2 External Equipment ConnectionsYour TV can be used to display output from most devices.1. Verify that your device has a video port that matches an available port on the TV (HDMI, Component, etc)2. Turn the TV and your device off.3. Connect the appropriate cable (not included) to the TV and the device.4. Turn the TV and your device on. Set the TV’s input to match the connection you used (HDMI, Component, Composite,etc).Connecting to an antenna/cable wall jackConnect one end of a coaxial cable (not included) to the ANT IN jack on the back of your TV, then connect the other endof the cable into the antenna or cable TV wall outlet.Note To improve picture quality from an antenna in a poor signal area, install a signal amplifier. If you need to split the antennasignal to connect two TVs, install a two-way splitter. Connector: F type plug. Input impedance: 75 ohm unbalanced. (Philippines) Connector: IEC type plug. Input impedance: 75ohm unbalanced. (Others)

/ 49
