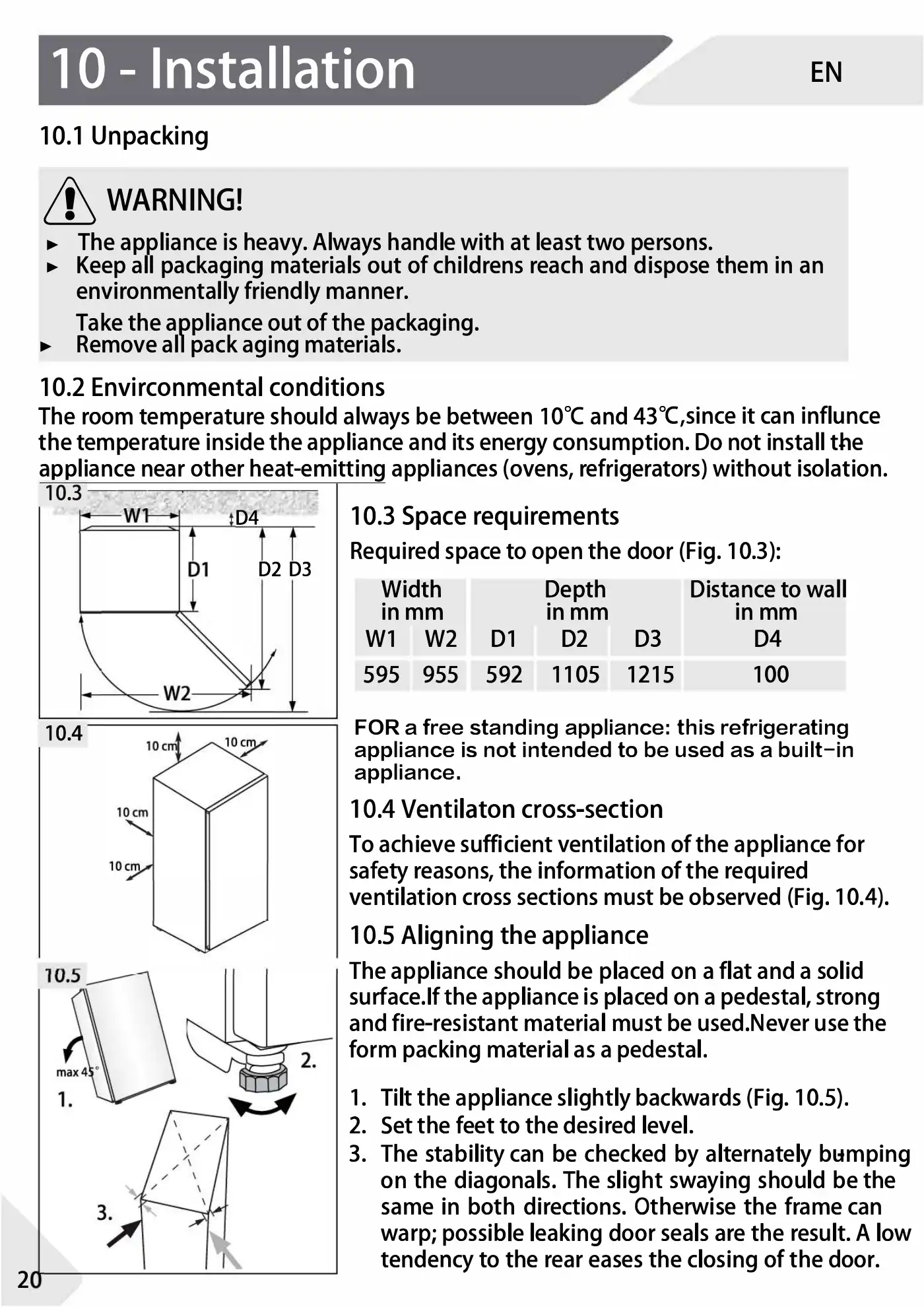

21 O - lnstallation EN10.1 Unpacking& WARNING!► The appliance is heavy. Always handle with at least two persons.► Keep all packaging materials out of childrens reach and dispose them in anenvironmentally friendly manner.Take the appliance out of the packaging.► Remove all pack aging materials.10.2 Envirconmental conditionsThe room temperature should always be between 10°C and 43°(,since it can influncethe temperature inside the appliance and its energy consumption. Do not install theappliance near other heat-emitting appliances (ovens, refrigerators) without isolation.10.3 -�-_ -r �----D4D2 D310.410.3 Space requirementsRequired space to open the door (Fig. 10.3):Width Depth Distance to wallin mm in mm in mmW1 W2 D1 D2 D3 D4595 955 592 1105 1215 100FOR a free standing appliance: this refrigeratingappliance is not intended to be used as a built-inappliance.10.4 Ventilaton cross-sectionTo achieve sufficient ventilation of the appliance forsafety reasons, the information of the requiredventilation cross sections must be observed {Fig. 10.4).10.5 Aligning the applianceThe appliance should be placed on a flat and a solidsurface.lf the appliance is placed on a pedestal, strongand fire-resistant materiai must be used.Never use theform packing materiai as a pedestal.1. Tilt the appliance slightly backwards {Fig. 10.5).2. Set the feet to the desired level.3. The stability can be checked by alternately bl:fmpingon the diagonals. The slight swaying should be thesame in both directions. Otherwise the frame canwarp; possible leaking door seals are the result. A lowtendency to the rear eases the closing of the door.
