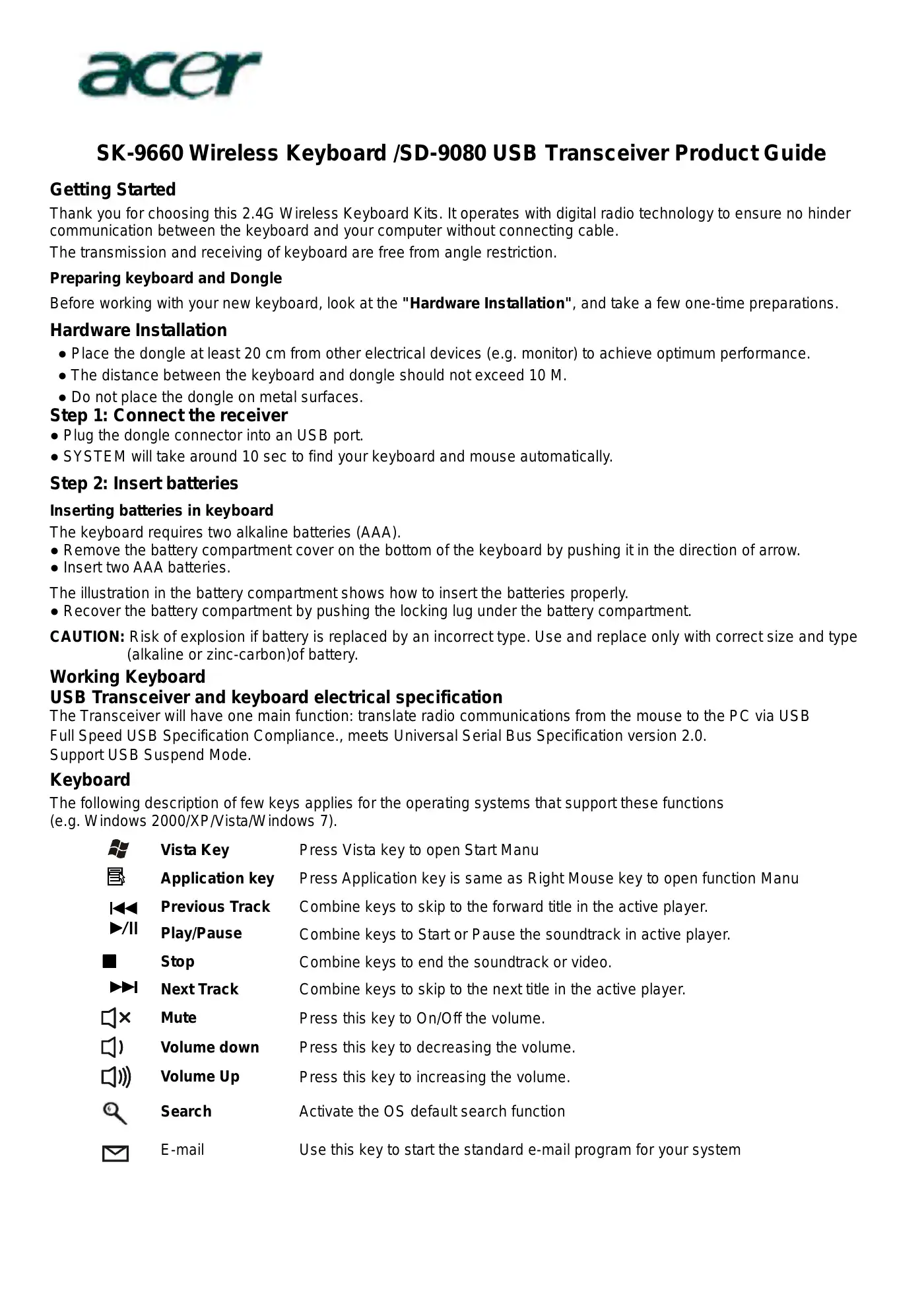

Acer SK-9660 Product Manual Manual pdf 1 page image

SK-9660 Wireless Keyboard /SD-9080 USB Transceiver Product GuideGetting StartedThank you for choosing this 2.4G Wireless Keyboard Kits. It operates with digital radio technology to ensure no hindercommunication between the keyboard and your computer without connecting cable.The transmission and receiving of keyboard are free from angle restriction.Preparing keyboard and DongleBefore working with your new keyboard, look at the "Hardware Installation", and take a few one-time preparations.Hardware Installation● Place the dongle at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance.● The distance between the keyboard and dongle should not exceed 10 M.● Do not place the dongle on metal surfaces.Step 1: Connect the receiver● Plug the dongle connector into an USB port.● SYSTEM will take around 10 sec to find your keyboard and mouse automatically.Step 2: Insert batteriesInserting batteries in keyboardThe keyboard requires two alkaline batteries (AAA).● Remove the battery compartment cover on the bottom of the keyboard by pushing it in the direction of arrow.● Insert two AAA batteries.The illustration in the battery compartment shows how to insert the batteries properly.● Recover the battery compartment by pushing the locking lug under the battery compartment.CAUTION: Risk of explosion if battery is replaced by an incorrect type. Use and replace only with correct size and type(alkaline or zinc-carbon)of battery.Working KeyboardUSB Transceiver and keyboard electrical specificationThe Transceiver will have one main function: translate radio communications from the mouse to the PC via USBFull Speed USB Specification Compliance., meets Universal Serial Bus Specification version 2.0.Support USB Suspend Mode.KeyboardThe following description of few keys applies for the operating systems that support these functions(e.g. Windows 2000/XP/Vista/Windows 7).Vista Key Press Vista key to open Start ManuApplication key Press Application key is same as Right Mouse key to open function ManuPrevious Track Combine keys to skip to the forward title in the active player.Play/Pause Combine keys to Start or Pause the soundtrack in active player. Stop Combine keys to end the soundtrack or video.Next Track Combine keys to skip to the next title in the active player.Mute Press this key to On/Off the volume.Volume down Press this key to decreasing the volume.Volume Up Press this key to increasing the volume.Search Activate the OS default search functionE-mail Use this key to start the standard e-mail program for your system
