Acer SK-2063 Product Manual

Also see for SD-9080: Product guide Product guide Product guide

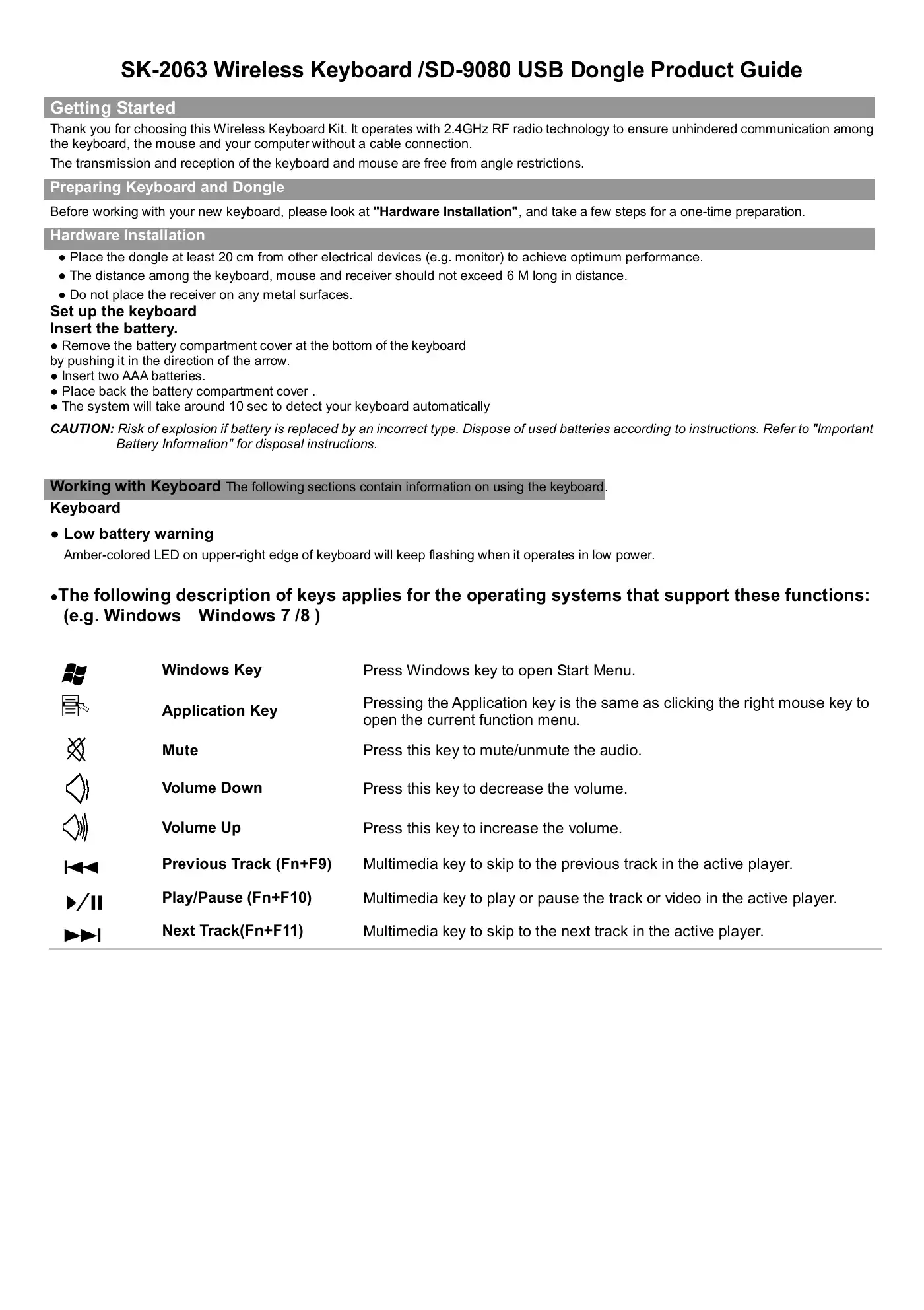

SK-2063 Wireless Keyboard /SD-9080 USB Dongle Product GuideGetting StartedThank you for choosing this Wireless Keyboard Kit. It operates with 2.4GHz RF radio technology to ensure unhindered communication amongthe keyboard, the mouse and your computer without a cable connection.The transmission and reception of the keyboard and mouse are free from angle restrictions.Preparing Keyboard and DongleBefore working with your new keyboard, please look at "Hardware Installation", and take a few steps for a one-time preparation.Hardware Installation● Place the dongle at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance.● The distance among the keyboard, mouse and receiver should not exceed 6 M long in distance.● Do not place the receiver on any metal surfaces.Set up the keyboardInsert the battery.● Remove the battery compartment cover at the bottom of the keyboardby pushing it in the direction of the arrow.● Insert two AAA batteries.● Place back the battery compartment cover .● The system will take around 10 sec to detect your keyboard automaticallyCAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to instructions. Refer to "ImportantBattery Information" for disposal instructions.Working with Keyboard The following sections contain information on using the keyboard.Keyboard● Low battery warningAmber-colored LED on upper-right edge of keyboard will keep flashing when it operates in low power.●The following description of keys applies for the operating systems that support these functions:(e.g. Windows Windows 7 /8 )Windows Key Press Windows key to open Start Menu.Application Key Pressing the Application key is the same as clicking the right mouse key toopen the current function menu.Mute Press this key to mute/unmute the audio.Volume Down Press this key to decrease the volume.Volume Up Press this key to increase the volume.Previous Track (Fn+F9) Multimedia key to skip to the previous track in the active player.Play/Pause (Fn+F10) Multimedia key to play or pause the track or video in the active player.Next Track(Fn+F11) Multimedia key to skip to the next track in the active player.
