Acer P205H Series User Manual

Language

Acer P205H Series User Manual Manual pdf 1 page image

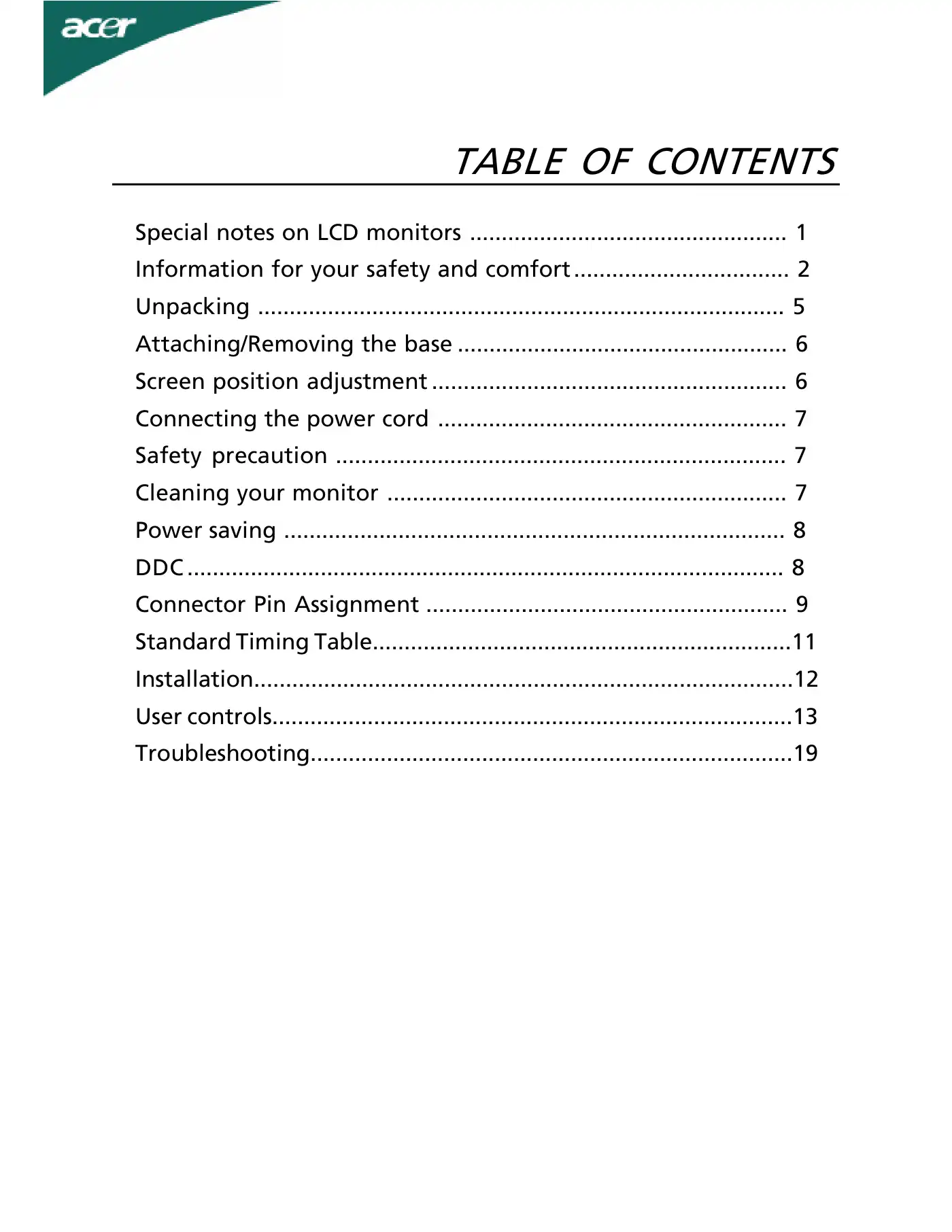

TABLE OF CONTENTSSpecial notes on LCD monitors .................................................. 1Information for your safety and comfort .................................. 2Unpacking ................................................................................... 5Attaching/Removing the base .................................................... 6Screen position adjustment ........................................................ 6Connecting the power cord ....................................................... 7Safety precaution ....................................................................... 7Cleaning your monitor ............................................................... 7Power saving ............................................................................... 8DDC .............................................................................................. 8Connector Pin Assignment ......................................................... 9Standard Timing Table..................................................................11Installation.....................................................................................12User controls..................................................................................13Troubleshooting............................................................................19

/ 24

Questions and answers

Heed help?

Ask question about this manual

Frequently asked questions

For troubleshooting steps, refer to the 'Troubleshooting' section starting on page 19 of the manual. Page 1

The flickering is normal due to the nature of the fluorescent light. To resolve this, turn off the Power Switch and then turn it on again. Page 2

An afterimage may remain after switching images or displaying the same image for hours due to the nature of the LCD screen. To recover the screen, change the image or turn off the Power Switch for a few hours. Page 2

Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided. Page 3

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet. Page 3

If the power cord or plug is damaged, cut, or frayed, you should unplug the product from the wall outlet immediately and refer servicing to qualified service personnel. Page 4

No, you should only adjust those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition. Page 4

To reduce eyestrain, rest your eyes frequently, give them regular breaks by looking away from the monitor and focusing on a distant point, blink frequently to keep your eyes from drying out. Additionally, keep your display clean, adjust the brightness and contrast for comfort, eliminate glare and reflections, avoid awkward viewing angles, and do not look at bright light sources for extended periods. Page 5

To attach the base, align it with the stand and push the base towards the top of the monitor. Page 7

To turn the monitor ON or OFF, use the Power Switch. The Power LED will light up to indicate that the power is turned ON. Page 14
