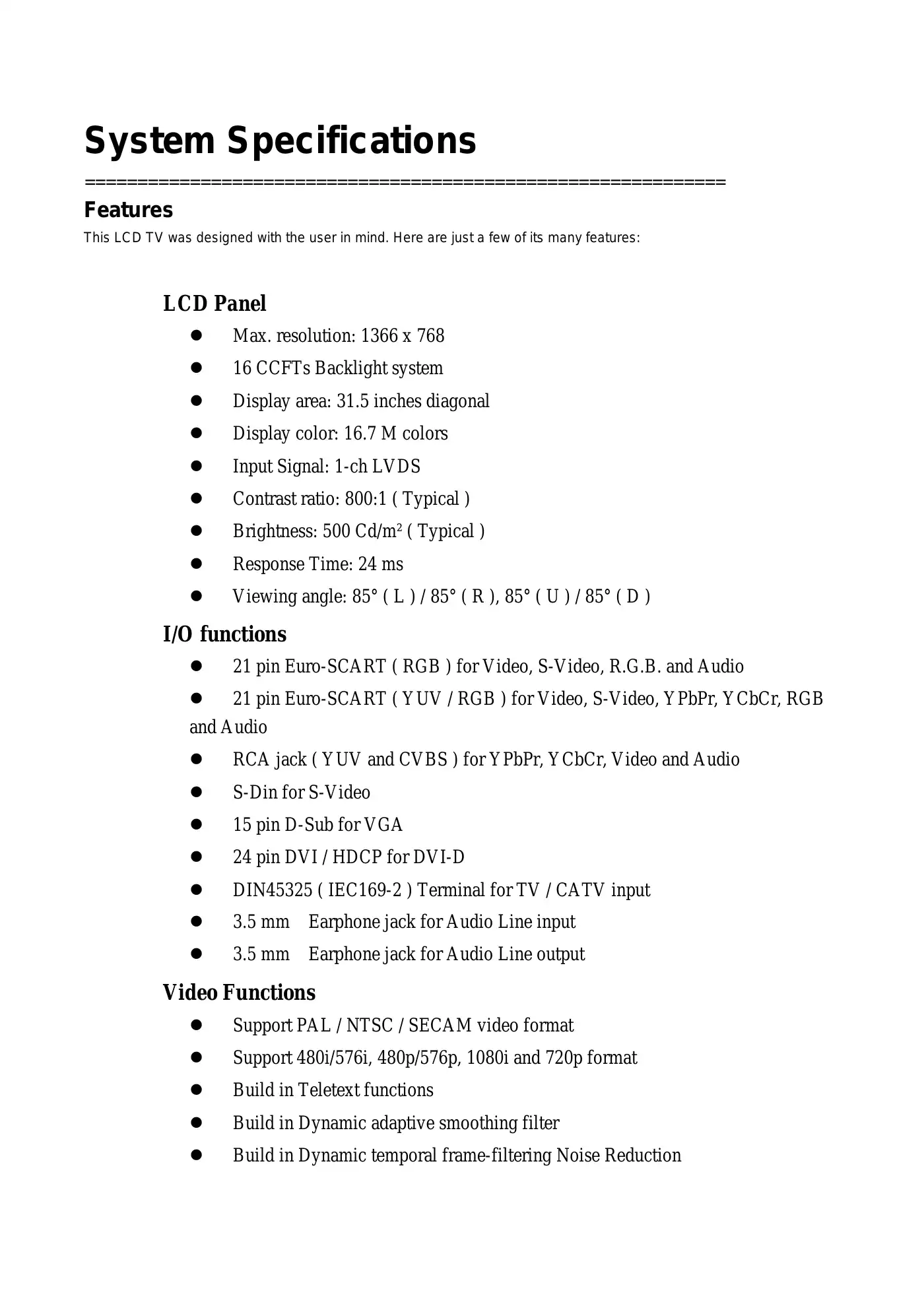

System Specifications=============================================================FeaturesThis LCD TV was designed with the user in mind. Here are just a few of its many features:LCD Panelz Max. resolution: 1366 x 768z 16 CCFTs Backlight systemz Display area: 31.5 inches diagonalz Display color: 16.7 M colorsz Input Signal: 1-ch LVDSz Contrast ratio: 800:1 ( Typical )z Brightness: 500 Cd/m² ( Typical )z Response Time: 24 msz Viewing angle: 85° ( L ) / 85° ( R ), 85° ( U ) / 85° ( D )I/O functionsz 21 pin Euro-SCART ( RGB ) for Video, S-Video, R.G.B. and Audioz 21 pin Euro-SCART ( YUV / RGB ) for Video, S-Video, YPbPr, YCbCr, RGBand Audioz RCA jack ( YUV and CVBS ) for YPbPr, YCbCr, Video and Audioz S-Din for S-Videoz 15 pin D-Sub for VGAz 24 pin DVI / HDCP for DVI-Dz DIN45325 ( IEC169-2 ) Terminal for TV / CATV inputz 3.5 mm Earphone jack for Audio Line inputz 3.5 mm Earphone jack for Audio Line outputVideo Functionsz Support PAL / NTSC / SECAM video formatz Support 480i/576i, 480p/576p, 1080i and 720p formatz Build in Teletext functionsz Build in Dynamic adaptive smoothing filterz Build in Dynamic temporal frame-filtering Noise Reduction
