Acer AT2635 Service Manual

Also see for AT2635:

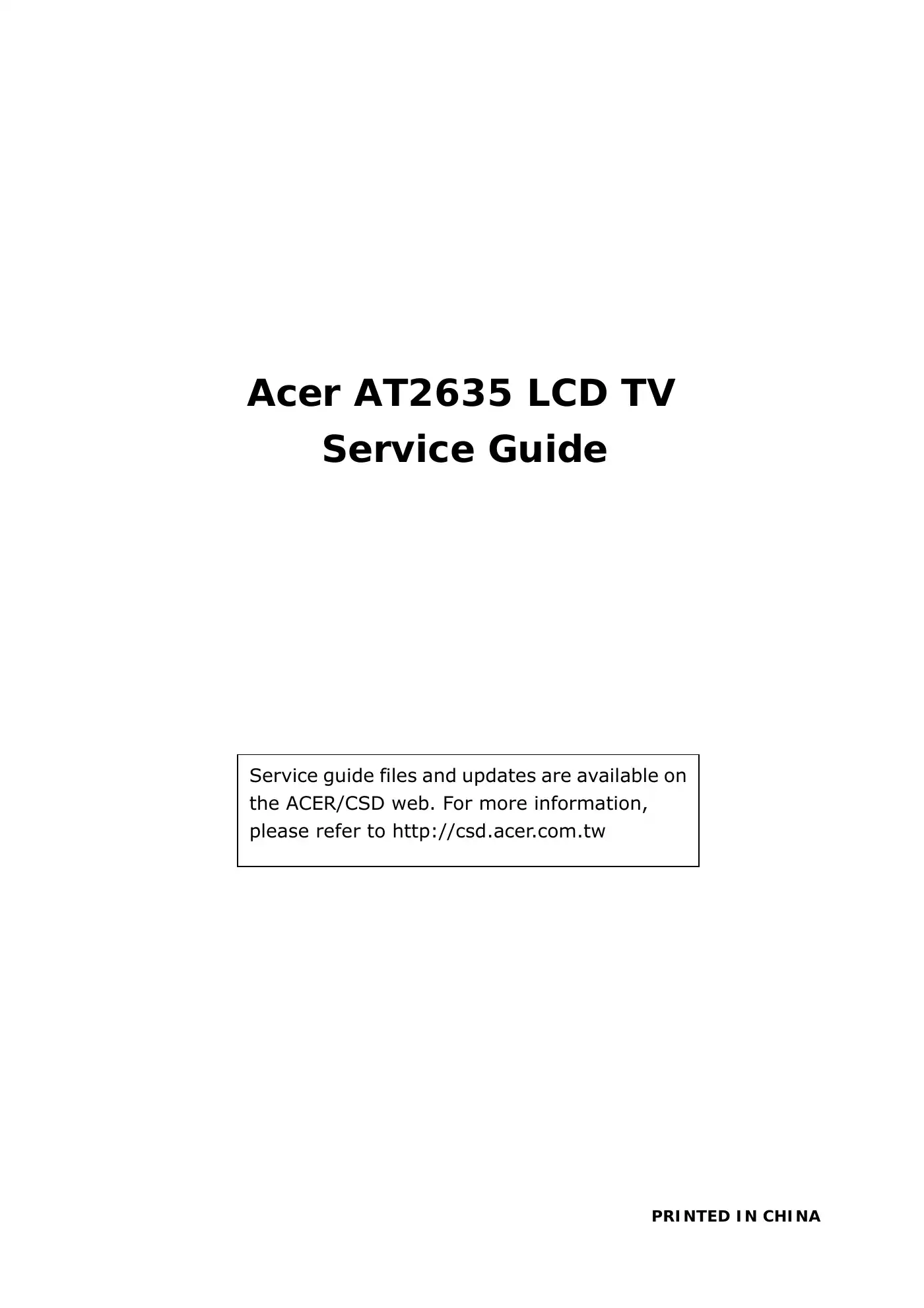

Contents Revision History2 Screen Messages5 Remote Control10 Key Functions10 Hardware Specification and Configuration13 Firmware Specifications14 Power Saving14 Performance Specifications15 Overall Dimensions17 Environmental Requirements18 Storage and Shipping18 Vibration Test19 Machine Disassembly and Replacement22 General Information22 FRU (Field Replaceable Unit) List27 Exploded Parts List30	Acer AT2635 LCD TVService GuidePRINTED IN CHINAService guide files and updates are available onthe ACER/CSD web. For more information,please refer to http://csd.acer.com.tw Next / 32

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

The Acer AT2635 supports a maximum resolution of 1366 x 768.

The Acer AT2635 supports PAL, NTSC, and SECAM video formats, as well as 480i/576i, 480p/576p, 1080i, and 720p formats.

The internal speakers on the Acer AT2635 are 5 W x 2 stereo and the volume is adjustable.

The power consumption of the Acer AT2635 in standby mode is 1 Watt Max.

You can switch between different channels and input sources using the 'Display' button on the remote control.

To change the scaling mode, use the four-way direction key to navigate to the 'Wide' option in the menu. Then, use the 'OK' key to select and change the scaling mode to either 4:3, 16:9, Panorama, or Letterbox.

To adjust the volume, use the 'Volume up' or 'Volume down' keys on the remote control. These keys will increase or decrease the volume, respectively.

The available sound systems for the analog TV system in the Acer AT2635 are B/G/D/K/I/L for TV Color system and NICAM/A2 for Stereo system.

You need to release 3 screws from the Power/B and LVDs cable.

You need to release 7 screws from the Main/B.
