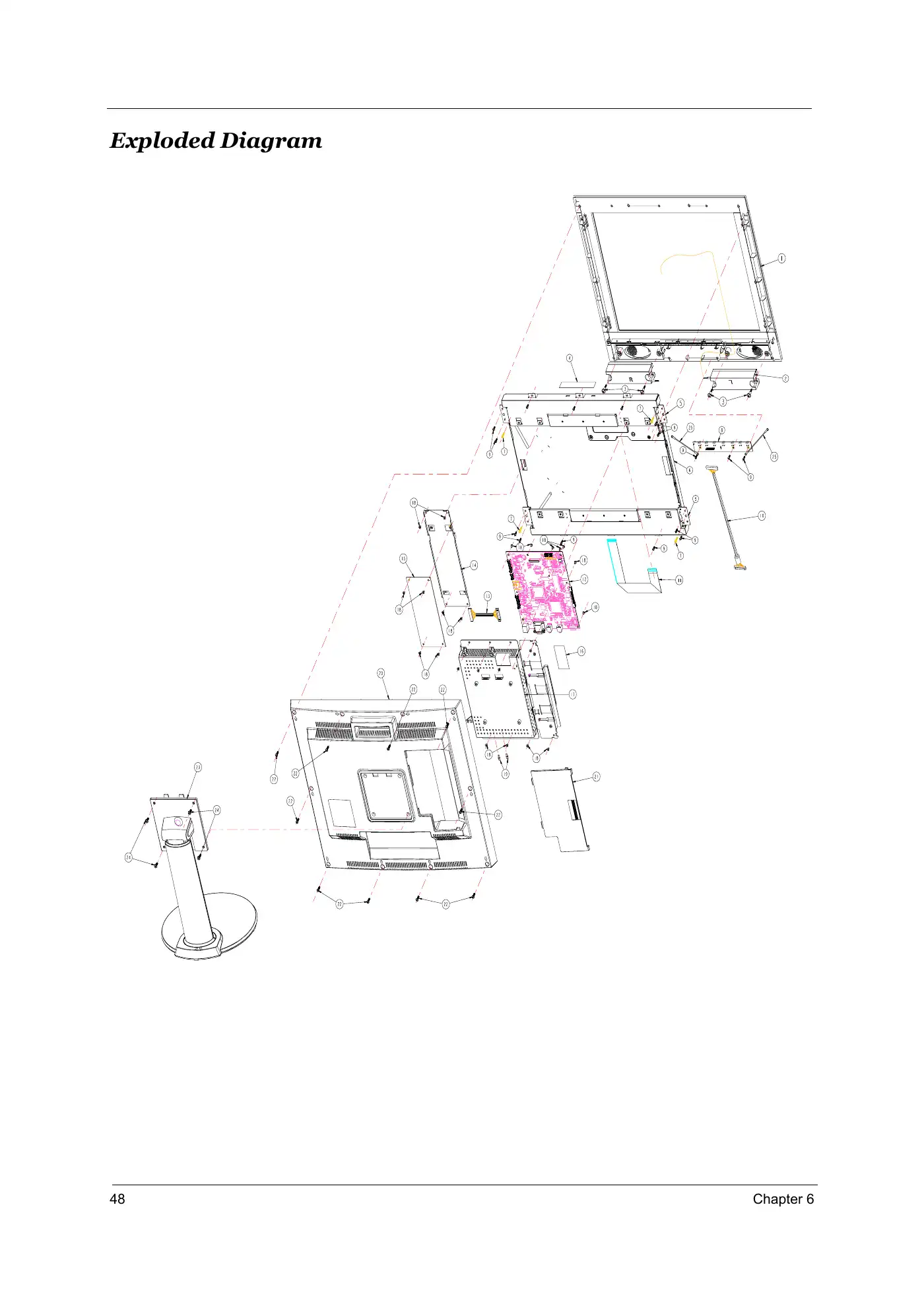

Acer AT2001 Service Manual

The maximum power output of the Acer AT2001 is 63 Watts.

The SCART IN(L,R) and SCART OUT(L,R) connectors are used for audio and video input and output. They allow you to connect external devices such as DVD players, gaming consoles, or other audio/video sources to the Acer AT2001.

To connect an external audio source to the Acer AT2001 using the AV RCA Connector, you need to use the AV RCA Connector located on the I/O Board. This connector allows you to input audio signals from external devices, ensuring that you can enjoy high-quality sound from your connected sources.

The Acer AT2001 LCD TV has a resolution of 800 horizontal by 600 vertical pixels, which is SVGA resolution.

The Acer AT2001 LCD TV uses a direct 6 U-lamp backlight system.

The response time is defined as the interval between the 10% and 90% of the amplitudes when the input signals are changed from 'Black' to 'White' (falling time) and from 'White' to 'Black' (rising time). This should be measured by switching the input signal for 'black' and 'white'.

The Acer AT2001 can receive signals from channel E2 (48.25 MHz) to channel E69 (855.25 MHz).

The maximum audio output for the built-in speaker at 10% THD with a 1.0Vp-p / 1kHZ input is 2W + 2W.

To adjust the sound level, use the 'Volume -' button to lower the sound and the 'Volume +' button to increase the sound.

To navigate through the menu options, use the 'Menu Option -' button to reduce a menu option value and the 'Menu Option +' button to increase a menu option value. Use the 'Menu Option -' and 'Menu Option +' buttons to select the previous and next menu options, respectively.
