Acer 700 Series User Manual
Contents

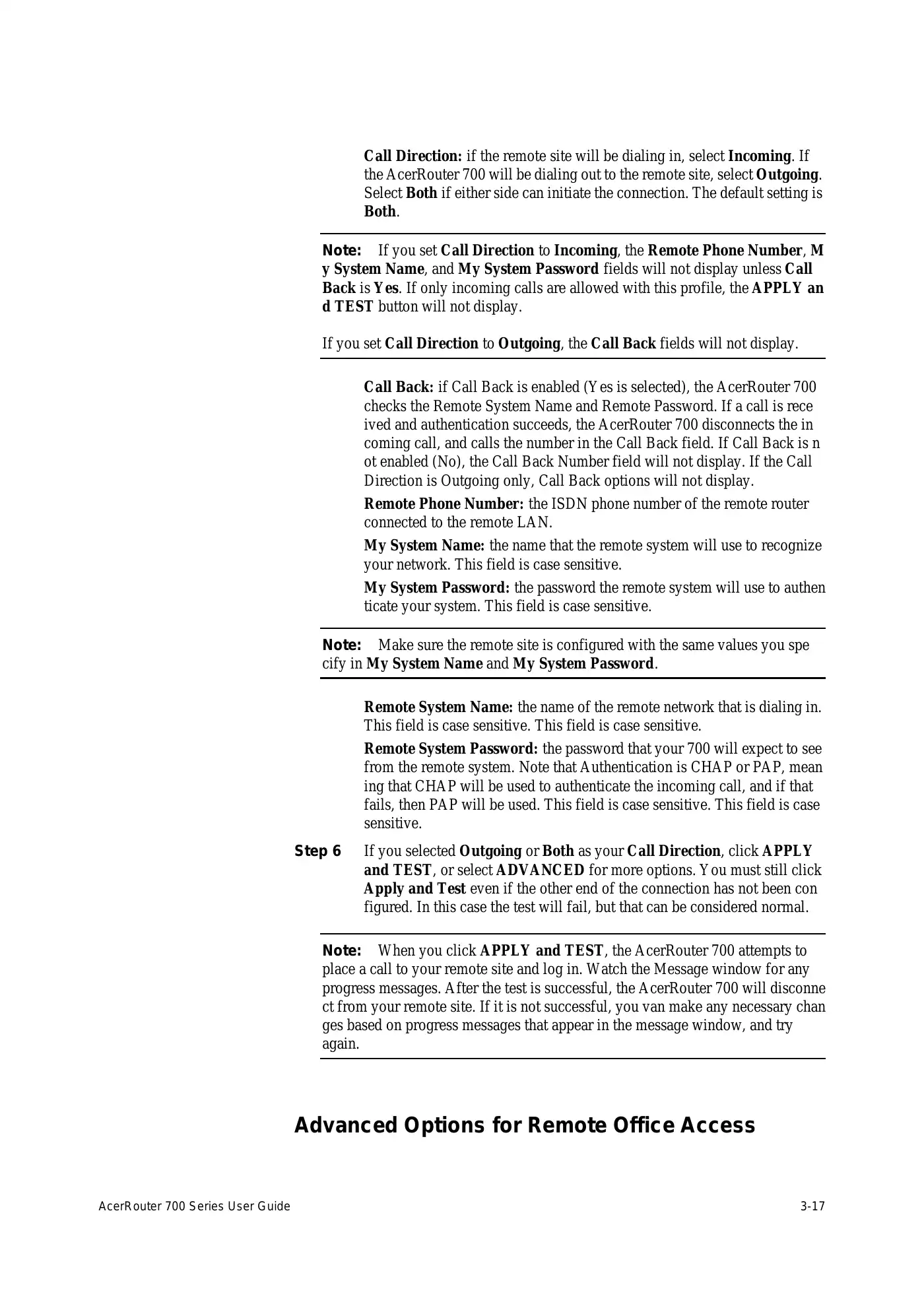

|  AcerRouter 700 Series User Guide 3-17Call Direction: if the remote site will be dialing in, select Incoming. Ifthe AcerRouter 700 will be dialing out to the remote site, select Outgoing.Select Both if either side can initiate the connection. The default setting isBoth.Note: If you set Call Direction to Incoming, the Remote Phone Number, My System Name, and My System Password fields will not display unless CallBack is Yes. If only incoming calls are allowed with this profile, the APPLY and TEST button will not display.If you set Call Direction to Outgoing, the Call Back fields will not display.Call Back: if Call Back is enabled (Yes is selected), the AcerRouter 700checks the Remote System Name and Remote Password. If a call is received and authentication succeeds, the AcerRouter 700 disconnects the incoming call, and calls the number in the Call Back field. If Call Back is not enabled (No), the Call Back Number field will not display. If the CallDirection is Outgoing only, Call Back options will not display.Remote Phone Number: the ISDN phone number of the remote routerconnected to the remote LAN.My System Name: the name that the remote system will use to recognizeyour network. This field is case sensitive.My System Password: the password the remote system will use to authenticate your system. This field is case sensitive.Note: Make sure the remote site is configured with the same values you specify in My System Name and My System Password.Remote System Name: the name of the remote network that is dialing in.This field is case sensitive. This field is case sensitive.Remote System Password: the password that your 700 will expect to seefrom the remote system. Note that Authentication is CHAP or PAP, meaning that CHAP will be used to authenticate the incoming call, and if thatfails, then PAP will be used. This field is case sensitive. This field is casesensitive.Step 6 If you selected Outgoing or Both as your Call Direction, click APPLYand TEST, or select ADVANCED for more options. You must still clickApply and Test even if the other end of the connection has not been configured. In this case the test will fail, but that can be considered normal.Note: When you click APPLY and TEST, the AcerRouter 700 attempts toplace a call to your remote site and log in. Watch the Message window for anyprogress messages. After the test is successful, the AcerRouter 700 will disconnect from your remote site. If it is not successful, you van make any necessary changes based on progress messages that appear in the message window, and tryagain.Advanced Options for Remote Office Access |
