Acer 700 Series User Manual
Contents

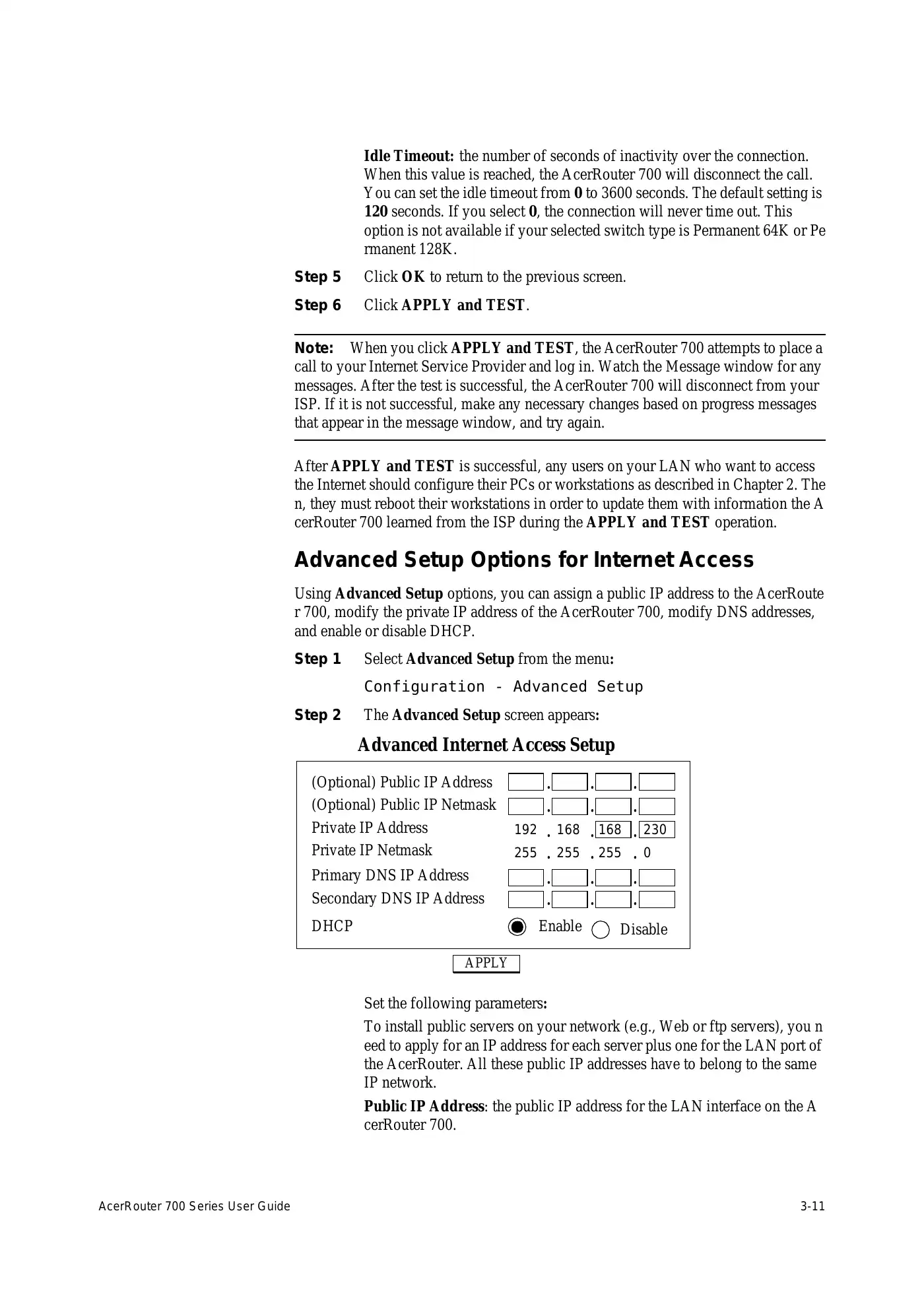

|  AcerRouter 700 Series User Guide 3-11Idle Timeout: the number of seconds of inactivity over the connection.When this value is reached, the AcerRouter 700 will disconnect the call.You can set the idle timeout from 0 to 3600 seconds. The default setting is120 seconds. If you select 0, the connection will never time out. Thisoption is not available if your selected switch type is Permanent 64K or Permanent 128K.Step 5 Click OK to return to the previous screen.Step 6 Click APPLY and TEST.Note: When you click APPLY and TEST, the AcerRouter 700 attempts to place acall to your Internet Service Provider and log in. Watch the Message window for anymessages. After the test is successful, the AcerRouter 700 will disconnect from yourISP. If it is not successful, make any necessary changes based on progress messagesthat appear in the message window, and try again.After APPLY and TEST is successful, any users on your LAN who want to accessthe Internet should configure their PCs or workstations as described in Chapter 2. Then, they must reboot their workstations in order to update them with information the AcerRouter 700 learned from the ISP during the APPLY and TEST operation.Advanced Setup Options for Internet AccessUsing Advanced Setup options, you can assign a public IP address to the AcerRouter 700, modify the private IP address of the AcerRouter 700, modify DNS addresses,and enable or disable DHCP.Step 1 Select Advanced Setup from the menu:Configuration - Advanced SetupStep 2 The Advanced Setup screen appears:Set the following parameters:To install public servers on your network (e.g., Web or ftp servers), you need to apply for an IP address for each server plus one for the LAN port ofthe AcerRouter. All these public IP addresses have to belong to the sameIP network.Public IP Address: the public IP address for the LAN interface on the AcerRouter 700.APPLYAdvanced Internet Access Setup(Optional) Public IP Address(Optional) Public IP NetmaskPrivate IP AddressPrivate IP NetmaskPrimary DNS IP AddressSecondary DNS IP AddressDHCP Enable Disable192 168 168 230255 255 255 0. . .. . .. . .. . .. . .. . . |
