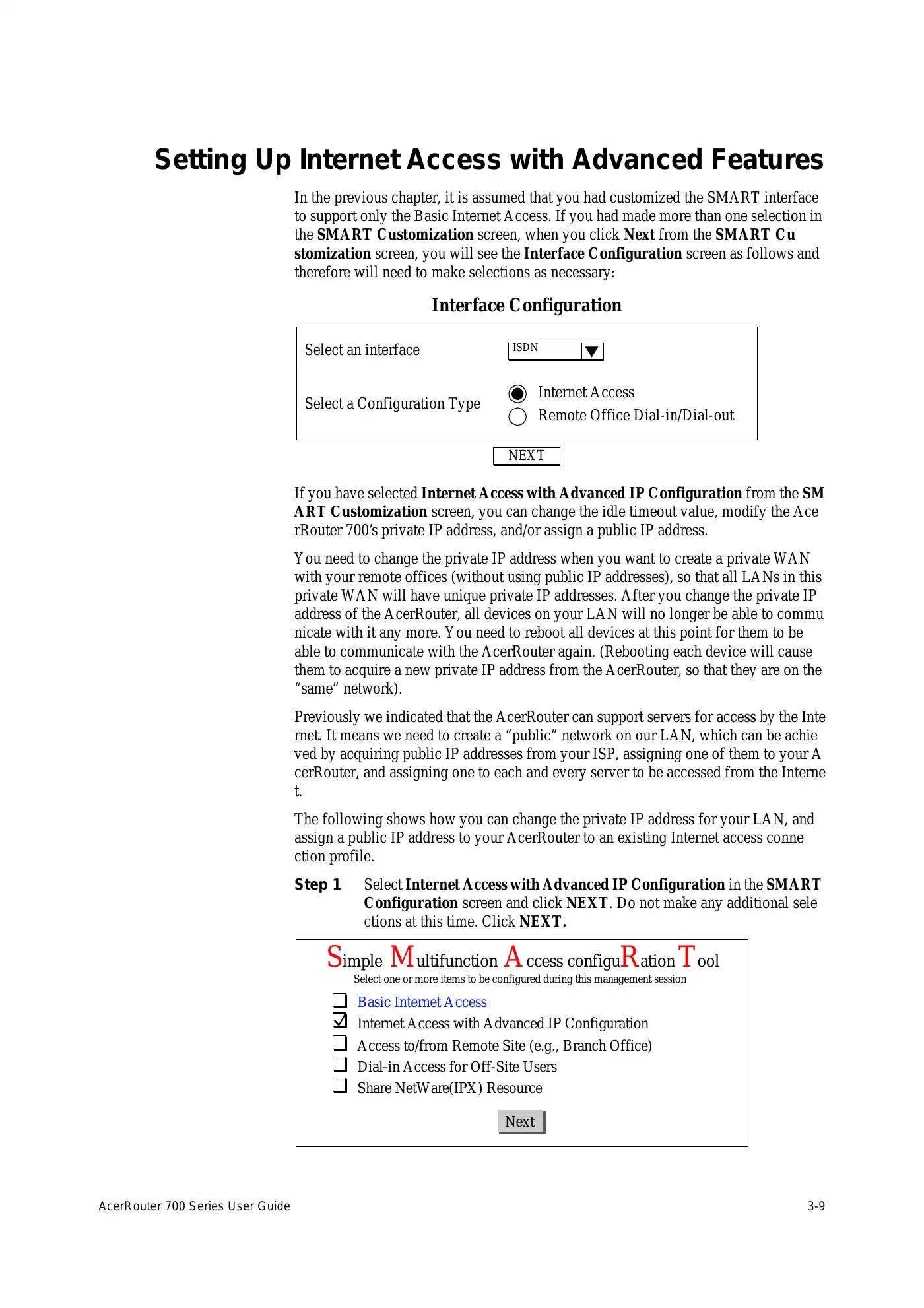

|  AcerRouter 700 Series User Guide 3-9Setting Up Internet Access with Advanced FeaturesIn the previous chapter, it is assumed that you had customized the SMART interfaceto support only the Basic Internet Access. If you had made more than one selection inthe SMART Customization screen, when you click Next from the SMART Customization screen, you will see the Interface Configuration screen as follows andtherefore will need to make selections as necessary:If you have selected Internet Access with Advanced IP Configuration from the SMART Customization screen, you can change the idle timeout value, modify the AcerRouter 700’s private IP address, and/or assign a public IP address.You need to change the private IP address when you want to create a private WANwith your remote offices (without using public IP addresses), so that all LANs in thisprivate WAN will have unique private IP addresses. After you change the private IPaddress of the AcerRouter, all devices on your LAN will no longer be able to communicate with it any more. You need to reboot all devices at this point for them to beable to communicate with the AcerRouter again. (Rebooting each device will causethem to acquire a new private IP address from the AcerRouter, so that they are on the“same” network).Previously we indicated that the AcerRouter can support servers for access by the Internet. It means we need to create a “public” network on our LAN, which can be achieved by acquiring public IP addresses from your ISP, assigning one of them to your AcerRouter, and assigning one to each and every server to be accessed from the Internet.The following shows how you can change the private IP address for your LAN, andassign a public IP address to your AcerRouter to an existing Internet access connection profile.Step 1 Select Internet Access with Advanced IP Configuration in the SMARTConfiguration screen and click NEXT. Do not make any additional selections at this time. Click NEXT.Select an interfaceNEXTInterface ConfigurationISDNSelect a Configuration Type Internet AccessRemote Office Dial-in/Dial-outSimple Multifunction Access configuRation ToolBasic Internet AccessInternet Access with Advanced IP ConfigurationAccess to/from Remote Site (e.g., Branch Office)Dial-in Access for Off-Site UsersShare NetWare(IPX) ResourceSelect one or more items to be configured during this management sessionNext |
