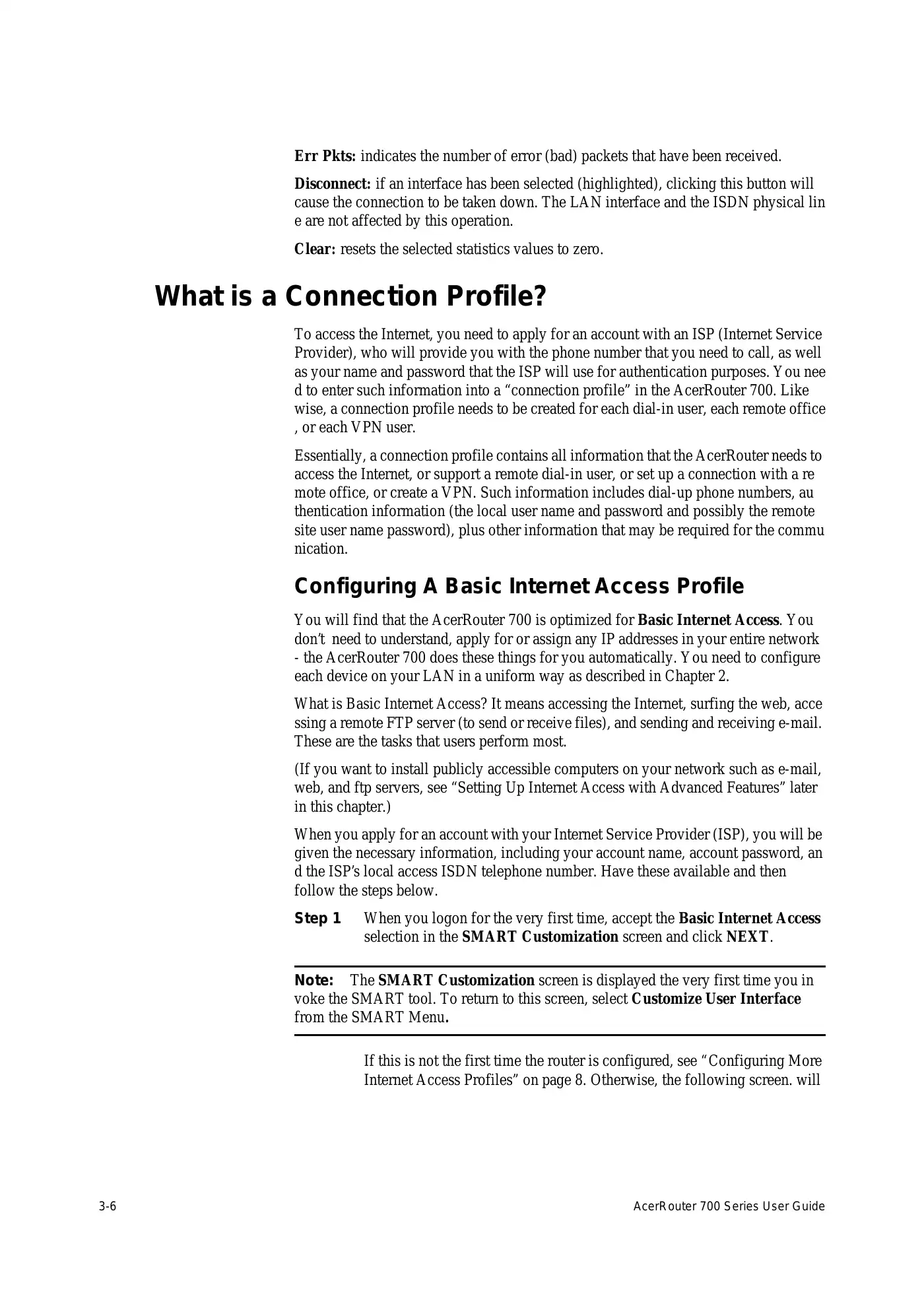

|  3-6 AcerRouter 700 Series User GuideErr Pkts: indicates the number of error (bad) packets that have been received.Disconnect: if an interface has been selected (highlighted), clicking this button willcause the connection to be taken down. The LAN interface and the ISDN physical line are not affected by this operation.Clear: resets the selected statistics values to zero.What is a Connection Profile?To access the Internet, you need to apply for an account with an ISP (Internet ServiceProvider), who will provide you with the phone number that you need to call, as wellas your name and password that the ISP will use for authentication purposes. You need to enter such information into a “connection profile” in the AcerRouter 700. Likewise, a connection profile needs to be created for each dial-in user, each remote office, or each VPN user.Essentially, a connection profile contains all information that the AcerRouter needs toaccess the Internet, or support a remote dial-in user, or set up a connection with a remote office, or create a VPN. Such information includes dial-up phone numbers, authentication information (the local user name and password and possibly the remotesite user name password), plus other information that may be required for the communication.Configuring A Basic Internet Access ProfileYou will find that the AcerRouter 700 is optimized for Basic Internet Access. Youdon’t need to understand, apply for or assign any IP addresses in your entire network- the AcerRouter 700 does these things for you automatically. You need to configureeach device on your LAN in a uniform way as described in Chapter 2.What is Basic Internet Access? It means accessing the Internet, surfing the web, accessing a remote FTP server (to send or receive files), and sending and receiving e-mail.These are the tasks that users perform most.(If you want to install publicly accessible computers on your network such as e-mail,web, and ftp servers, see “Setting Up Internet Access with Advanced Features” laterin this chapter.)When you apply for an account with your Internet Service Provider (ISP), you will begiven the necessary information, including your account name, account password, and the ISP’s local access ISDN telephone number. Have these available and thenfollow the steps below.Step 1 When you logon for the very first time, accept the Basic Internet Accessselection in the SMART Customization screen and click NEXT.Note: The SMART Customization screen is displayed the very first time you invoke the SMART tool. To return to this screen, select Customize User Interfacefrom the SMART Menu.If this is not the first time the router is configured, see “Configuring MoreInternet Access Profiles” on page 8. Otherwise, the following screen. will |
