Acer 700 Series User Manual

Contents
  1. Limitation of Liability2
  2. About this User Guide3
  3. Table of Contents5
  4. Chapter 1 Introduction9
  5. Chapter 2 Installing the Acerrouter17
  6. Chapter 3 Configuring the Acerrouter21
  7. Chapter 4 Configuring the Voice Adapter51
  8. Chapter 5 Managing the Acerrouter55
  9. Chapter 6 Advanced Configuration61
  10. Chapter 7 Messages77
  11. Appendix B Glossary87
Acer 700 Series User Manual Manual pdf 20 page image

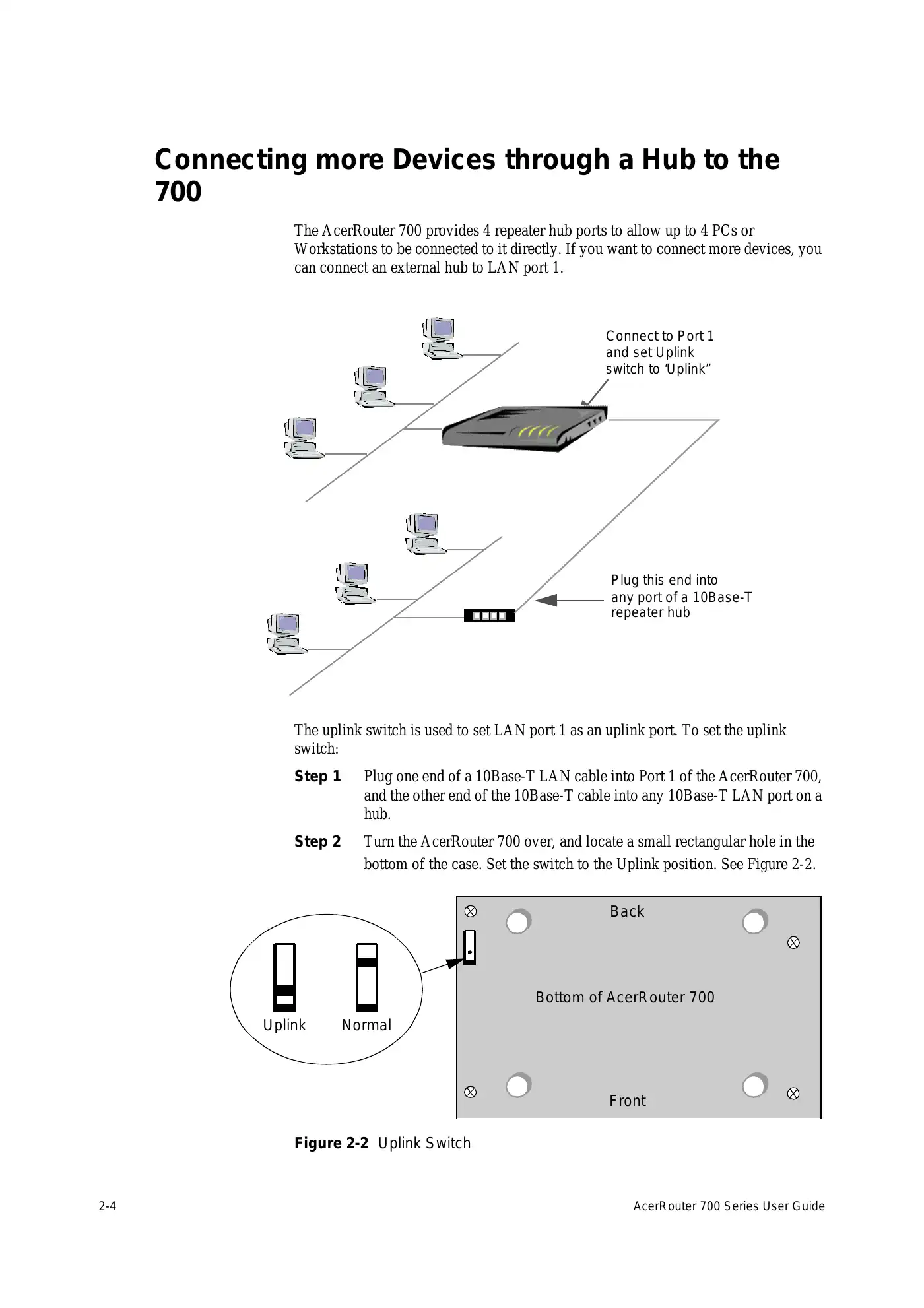

2-4 AcerRouter 700 Series User GuideConnecting more Devices through a Hub to the700The AcerRouter 700 provides 4 repeater hub ports to allow up to 4 PCs orWorkstations to be connected to it directly. If you want to connect more devices, youcan connect an external hub to LAN port 1.The uplink switch is used to set LAN port 1 as an uplink port. To set the uplinkswitch:Step 1 Plug one end of a 10Base-T LAN cable into Port 1 of the AcerRouter 700,and the other end of the 10Base-T cable into any 10Base-T LAN port on ahub.Step 2 Turn the AcerRouter 700 over, and locate a small rectangular hole in thebottom of the case. Set the switch to the Uplink position. See Figure 2-2.Figure 2-2 Uplink SwitchBottom of AcerRouter 700FrontBackUplink NormalConnect to Port 1and set Uplinkswitch to “Uplink”Plug this end intoany port of a 10Base-Trepeater hub
