Acer 700 Series User Manual

Contents
  1. Limitation of Liability2
  2. About this User Guide3
  3. Table of Contents5
  4. Chapter 1 Introduction9
  5. Chapter 2 Installing the Acerrouter17
  6. Chapter 3 Configuring the Acerrouter21
  7. Chapter 4 Configuring the Voice Adapter51
  8. Chapter 5 Managing the Acerrouter55
  9. Chapter 6 Advanced Configuration61
  10. Chapter 7 Messages77
  11. Appendix B Glossary87
Acer 700 Series User Manual Manual pdf 17 page image

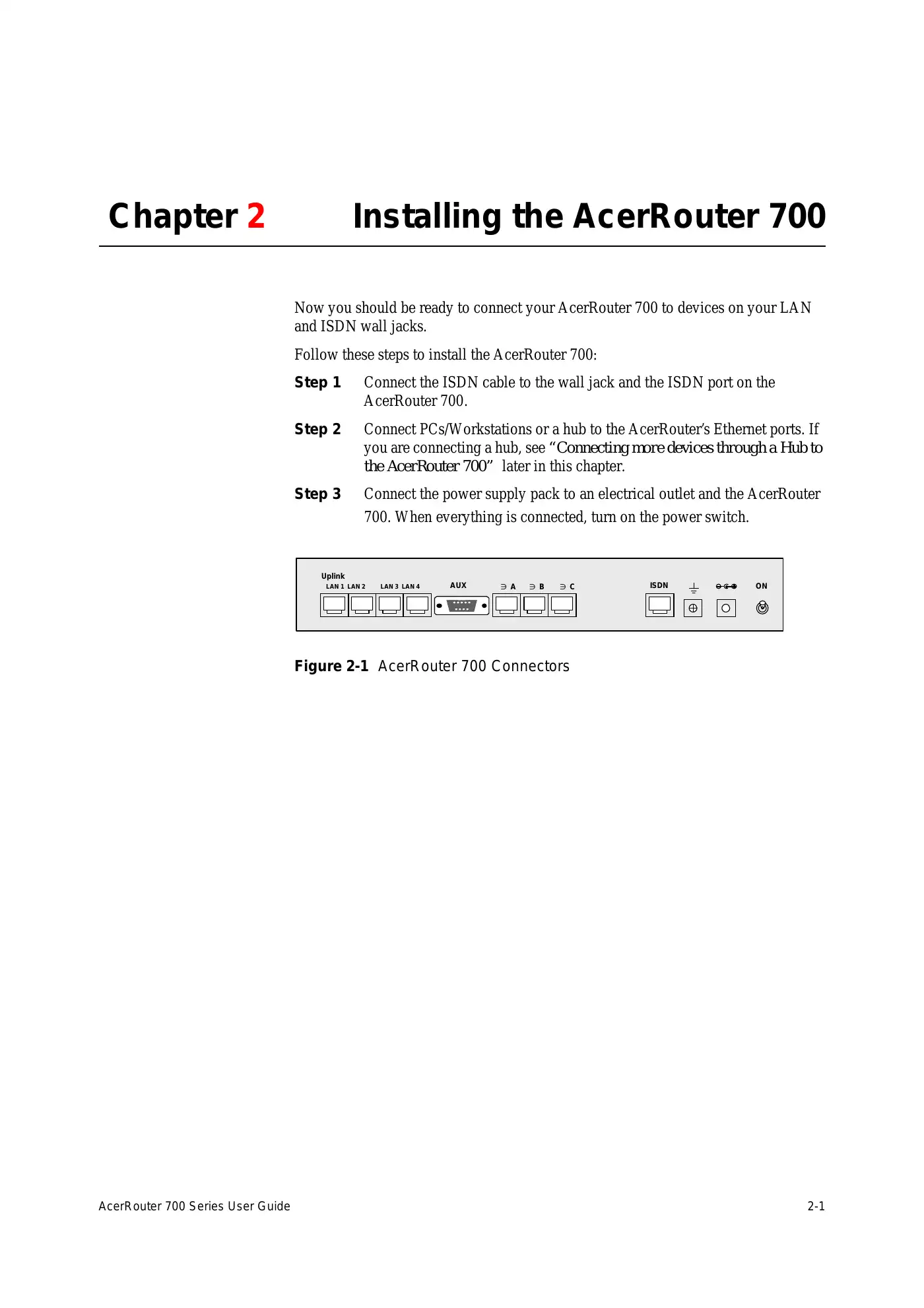

AcerRouter 700 Series User Guide 2-12Chapter 2 Installing the AcerRouter 700Now you should be ready to connect your AcerRouter 700 to devices on your LANand ISDN wall jacks.Follow these steps to install the AcerRouter 700:Step 1 Connect the ISDN cable to the wall jack and the ISDN port on theAcerRouter 700.Step 2 Connect PCs/Workstations or a hub to the AcerRouter’s Ethernet ports. Ifyou are connecting a hub, see “Connecting more devices through a Hub tothe AcerRouter 700” later in this chapter.Step 3 Connect the power supply pack to an electrical outlet and the AcerRouter700. When everything is connected, turn on the power switch.Figure 2-1 AcerRouter 700 ConnectorsAUX ISDN∋ A ∋ B ∋ C ONUplinkLAN 1 LAN 2 LAN 3 LAN 4
/ 94
