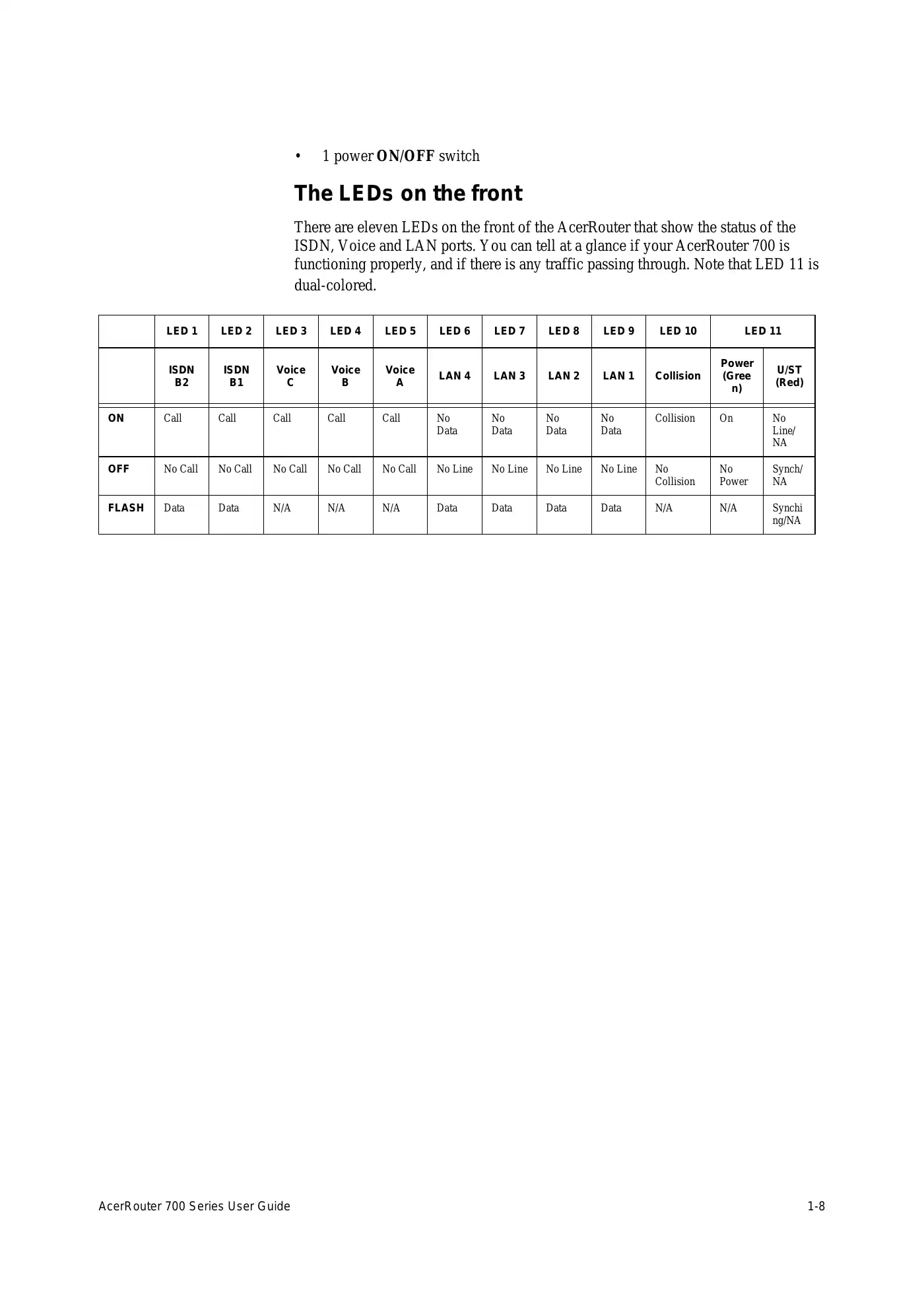

AcerRouter 700 Series User Guide 1-8• 1 power ON/OFF switchThe LEDs on the frontThere are eleven LEDs on the front of the AcerRouter that show the status of theISDN, Voice and LAN ports. You can tell at a glance if your AcerRouter 700 isfunctioning properly, and if there is any traffic passing through. Note that LED 11 isdual-colored.LED 1 LED 2 LED 3 LED 4 LED 5 LED 6 LED 7 LED 8 LED 9 LED 10 LED 11ISDNB2ISDNB1VoiceCVoiceBVoiceA LAN 4 LAN 3 LAN 2 LAN 1 CollisionPower(Green)U/ST(Red)ON Call Call Call Call Call NoDataNoDataNoDataNoDataCollision On NoLine/NAOFF No Call No Call No Call No Call No Call No Line No Line No Line No Line NoCollisionNoPowerSynch/NAFLASH Data Data N/A N/A N/A Data Data Data Data N/A N/A Synching/NA
